FESCTHY 19 300 100mV Split Core Current Transformer - 300Amp AC Measurement with 1M Flying Leads & HY2.0 Connector, 19x19mm Aperture - Perfect for Solar Panels, Energy Monitoring, and Industrial Applications
FESCTHY 19 300 100mV Split Core Current Transformer - 300Amp AC Measurement with 1M Flying Leads & HY2.0 Connector, 19x19mm Aperture - Perfect for Solar Panels, Energy Monitoring, and Industrial ApplicationsFESCTHY 19 300 100mV Split Core Current Transformer - 300Amp AC Measurement with 1M Flying Leads & HY2.0 Connector, 19x19mm Aperture - Perfect for Solar Panels, Energy Monitoring, and Industrial ApplicationsFESCTHY 19 300 100mV Split Core Current Transformer - 300Amp AC Measurement with 1M Flying Leads & HY2.0 Connector, 19x19mm Aperture - Perfect for Solar Panels, Energy Monitoring, and Industrial Applications

FESCTHY 19 300 100mV Split Core Current Transformer - 300Amp AC Measurement with 1M Flying Leads & HY2.0 Connector, 19x19mm Aperture - Perfect for Solar Panels, Energy Monitoring, and Industrial Applications

$39.87 $72.5 -45%

Delivery & Return:Free shipping on all orders over $50

Estimated Delivery:7-15 days international

People:27 people viewing this product right now!

Easy Returns:Enjoy hassle-free returns within 30 days!

Payment:Secure checkout

SKU:79813578

Guranteed safe checkout
amex
paypal
discover
mastercard
visa

Product Description

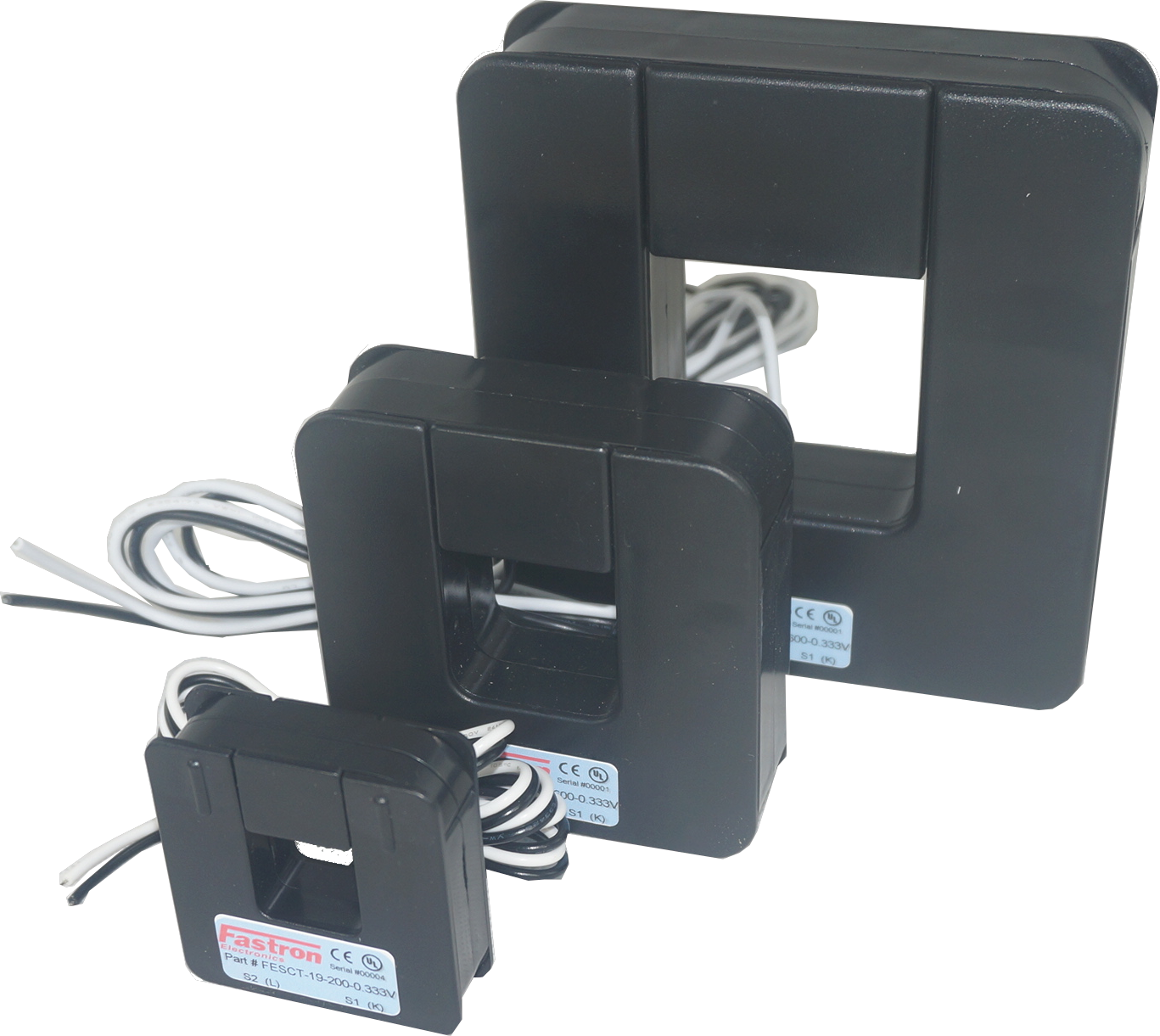

Fastron Electronics FESCTHY-19-300-100mV, 300 Amp, 100mV Class 1 Series Current Transformer

Features

  • Quick Release Split Core System
  • 1m Flying Leads
  • Mounting Feet Supplied
  • Self Powered
  • Rated System Voltage 0.60/3kV

    Applications

    • US Based Metering Equipment
    • Energy Monitoring
    • AC Power Control Systems
    • Power Factor Correction
    • Power Quality Measurements



    Specification
    Fastron Part NumberFESSCT-19-300-100mV
    TechnologySplit Core AC Current Transformer
    Ratio300/100mV
    Aperture Size19 x 19mm
    VA RatingN/A
    Accuracy ClassClass 1
    Output100mVAC (+20%)
    Isolation3kV (AC, 50Hz, 1 min)
    Bandwidth50-60Hz
    Mounting StyleCable Mount/Busbar Mount
    Operating Temperature Range-15°C / 55°C
    Continuous Current (max)300Amp x 1.2
    Termination Style1M Twisted Pair 0.34mm^2
    Unit Weight350g
    Factory Pack Qty9
