Product Description

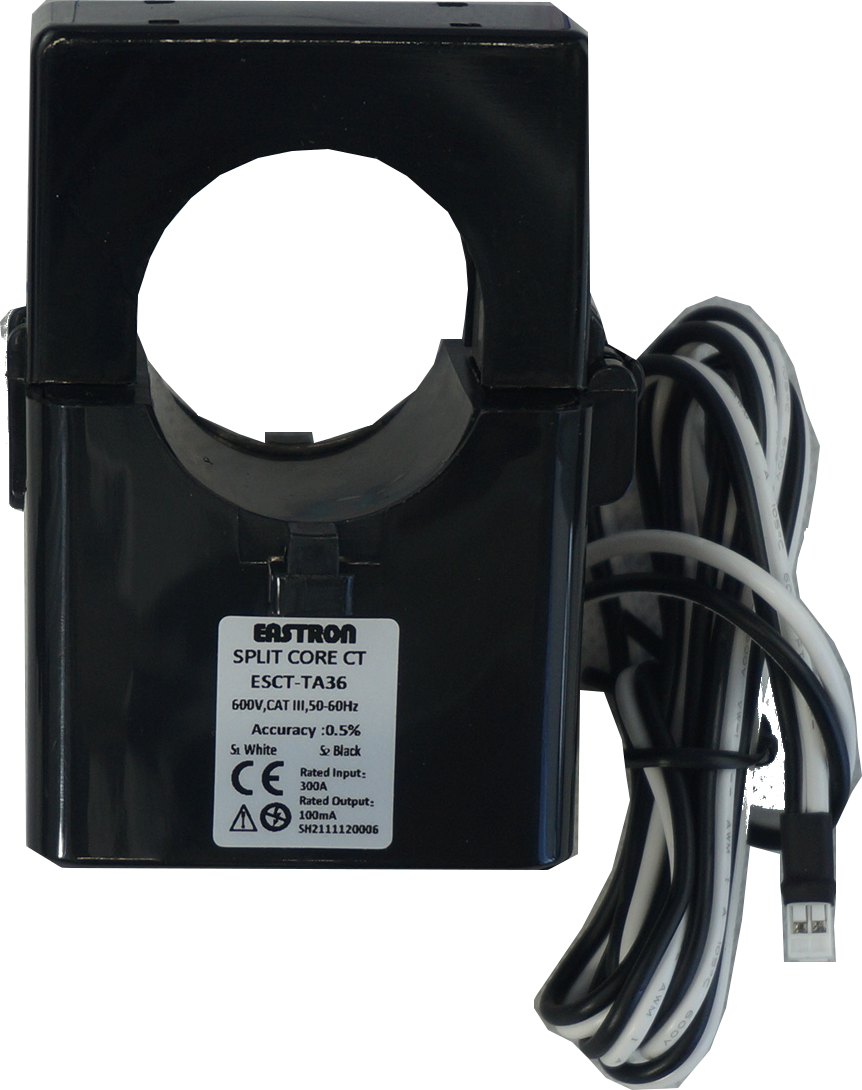

Fastron Electronics FESCT-TA36-300A/100mA + HY-2.0, 300A/100mA Measurement, Class 1 Split Core CT's, 36mm Aperture

Features

  • Quick Release Split Core System
  • Cable Mount
  • 100mAmp Output
  • Self Powered
  • Rated System Voltage 0.60/3kV
  • 0.9M Flying Leads with HY-2.0 Connector

    Applications

    • Eastron Modular Metering Equipment
    • Energy Monitoring
    • Load Balancing
    • Power Quality Measurements



    Specification
    Fastron Part NumberFESCT-F36-300A/100mA + HY-2.0
    TechnologySplit Core AC Current Transformer
    Ratio300/100mA
    Aperture Sizeø 36 mm
    VA Rating1VA
    Accuracy ClassClass 1
    Output100mA (+20%)
    Isolation3kV (AC, 50Hz, 1 min)
    Bandwidth50-60Hz
    Mounting StyleCable Mount/Busbar Mount
    Operating Temperature Range-15°C / 45°C
    Continuous Current (max)300Amp x 1.2
    Termination Style0.9M Flying leads with HY-2.0 Connector
    Unit Weight100g
    Factory Pack Qty9



    Datasheet
    Application Notes
